Determine Instrument Zero Points
Each observation can be used as a measure of the zero point of the spectrograph from the DRP's SNRSCnnn FITS header values. We calulate the flux at each wavelength by squaring the SNR value. By examining the distribution of these zero point values, we can try to determine the nominal zero point -- the zero point we would achieve under nominal (i.e. good) conditions. We'll take the 90th percentile of the distribution as "nominal" for this calculation.
from pathlib import Path
import yaml
import numpy as np
from astropy import stats
from astropy.time import Time
from astropy.table import Table, MaskedColumn
from kpf_etc.etc import kpf_photon_noise_estimate
import matplotlib.pyplot as plt
data_file = 'data/Feb2026_withEMZPs.csv'
t = Table.read(data_file, format='ascii.csv')
wavs = ['452', '548', '652', '747', '852']
def Nmasked(t, wav='548'):
mask_count = int(np.sum(np.array(t[f'SNRSC{wav}'].mask, dtype=int)))
print(f"{mask_count} masked out of {len(t)}")
Nmasked(t)
36 masked out of 12058
# KPFERA 1.0 is before SM1
SM1start = Time('2024-02-03')
SM1end = Time('2024-02-23')
# KPFERA 2.0 is between SM1 and SM2
SM2start = Time('2024-10-31')
SM2end = Time('2024-11-20')
# KPFERA 2.5/2.6 is between SM2 and SM3
SM3start = Time('2025-03-28')
SM3end = Time('2025-04-23')
# KPFERA 3.0 is between SM3 and SM4
SM4start = Time('2025-08-31')
SM4end = Time('2025-10-27')
# KPFERA 4.0 is after SM4
KPFEra = MaskedColumn(data=['?']*len(t), mask=np.zeros(len(t), dtype=bool), name='KPFEra', dtype='a3')
KPFEra[(t['MJD-OBS'] > 59823) & (t['MJD-OBS'] < SM1start.mjd)] = '1.0'
KPFEra[(t['MJD-OBS'] > SM1end.mjd) & (t['MJD-OBS'] < SM2start.mjd)] = '2.0'
KPFEra[(t['MJD-OBS'] > SM2end.mjd) & (t['MJD-OBS'] < SM3start.mjd)] = '2.5'
KPFEra[(t['MJD-OBS'] > SM3end.mjd) & (t['MJD-OBS'] < SM4start.mjd)] = '3.0'
KPFEra[(t['MJD-OBS'] > SM4end.mjd)] = '4.0'
KPFEra.mask = KPFEra == '?'
t.add_column(KPFEra)
eras = ['1.0', '2.0', '2.5', '3.0', '4.0']
print("Era Nfiles")
print("___________")
for era in eras:
print(era, len(KPFEra[KPFEra == era]))
print(' ? ', int(np.sum(np.array(KPFEra.mask, dtype=int))))
Era Nfiles
___________
1.0 4695
2.0 3423
2.5 1588
3.0 1639
4.0 713
? 0
for wav in wavs:
t.add_column(MaskedColumn(t['GAIAMAG'] + 2.5*np.log10(t[f'SNRSC{wav}']**2 / t['EXPTIME']), name=f'ZP_{wav}'))
t[f'SNRSC{wav}'].mask = t[f'SNRSC{wav}'].mask | (t[f'SNRSC{wav}'] <= 0)
t[f'ZP_{wav}'].mask = t[f'SNRSC{wav}'].mask
Nmasked(t, wav=wav)
49 masked out of 12058
36 masked out of 12058
35 masked out of 12058
35 masked out of 12058
35 masked out of 12058
/var/folders/3m/rvt2qsdx3nv0cv6m5rvbbgzc0000gp/T/ipykernel_46279/3421180547.py:2: RuntimeWarning: divide by zero encountered in log10
t.add_column(MaskedColumn(t['GAIAMAG'] + 2.5*np.log10(t[f'SNRSC{wav}']**2 / t['EXPTIME']), name=f'ZP_{wav}'))
def calculate_instrument_zero_point(t, wav='652', percentile=90, plot=False):
mask = t[f'SNRSC{wav}'].mask
ZP = float(np.percentile(t[f'ZP_{wav}'][~mask], percentile))
if plot:
plt.figure(figsize=(10,3))
plt.title(f'Instrument Zero Point ({wav} nm) = {ZP:.2f}')
plt.hist(t[f'ZP_{wav}'][~mask], bins=200, density=True, label='Zero Points')
plt.ylabel(f'Density (N={len(t[~mask])})')
plt.axvline(ZP, color='k', alpha=0.5, label='Nominal Zero Point')
plt.grid()
plt.legend(loc='best')
plt.xlim(5,17)
plt.xlabel('Zero Point (mag)')
plt.show()
return ZP
ZeroPoint = {}
for wav in wavs:
ZeroPoint[wav] = calculate_instrument_zero_point(t, wav=wav, percentile=90, plot=True)

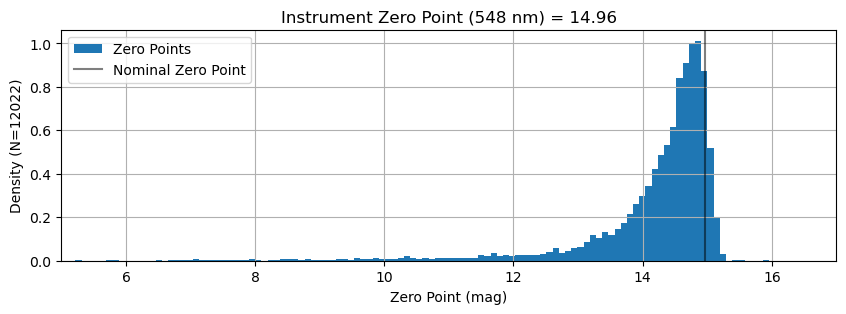

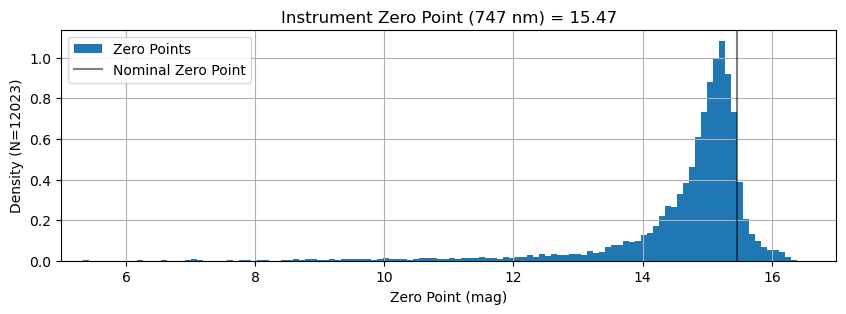

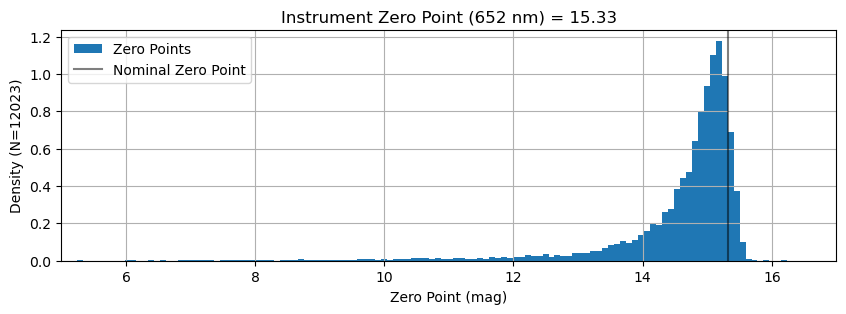

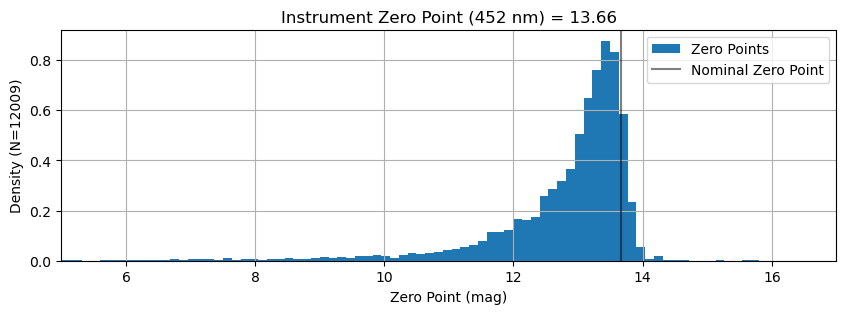

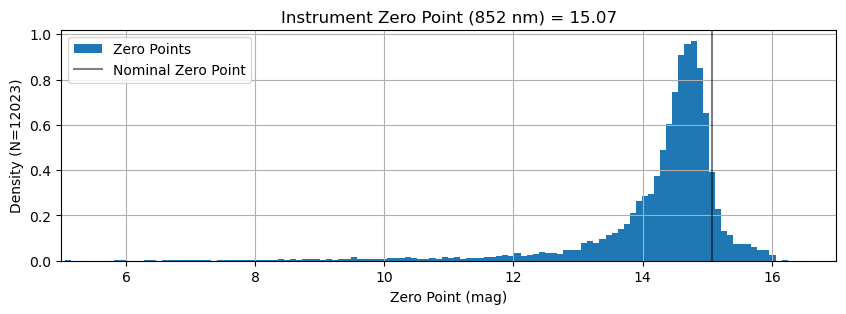

/Users/jwalawender/miniforge3/envs/py313/lib/python3.13/site-packages/numpy/lib/_function_base_impl.py:4786: UserWarning: Warning: 'partition' will ignore the 'mask' of the MaskedColumn.
arr.partition(
Discussion
As with the Exposure Meter, the distribution of individual zero point values follows roughly what one might expect: a peak at high zero point corresponding to good (cloudless) conditions. The width of that peak is probably related to the seeing distribution of these observations. The long tail of zero points at lower values correspond to cloudy nights with poor throughput.
Similar to the Exposure Meter's "bin 4" behavior, the longer wavelengths have a stronger tail to very high zero points.
ZeroPoint
{'452': 13.664362089856091,
'548': 14.964690898633878,
'652': 15.329155098901115,
'747': 15.466755734095996,
'852': 15.073233551565435}
Check for Evolution Over Time
We bin the zero point values by day (MJD) to see if we can discern any time evolution. For the main spectrograph, this is obscured by the fact that data were reduced with different versions of the DRP, which can perform differently at the extraction step. We'll color code each of the major DRP versions and slice the data by both day and DRP version.
mjd = np.array([int(d) for d in t['MJD-OBS']])
plt.figure(figsize=(12,12))
for w,wav in enumerate(wavs):
plt.subplot(3,2,w+1)

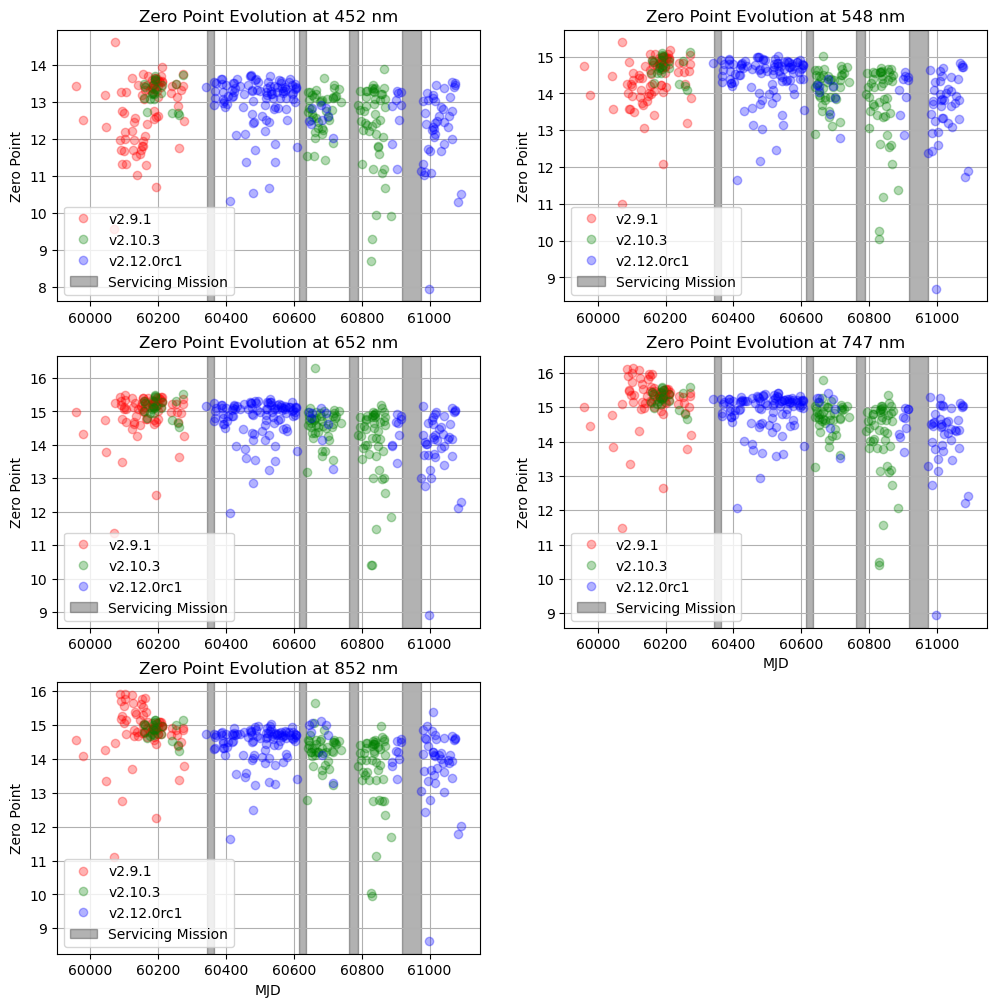

plt.title(f'Zero Point Evolution at {wav} nm')
drpvs = ['v2.9.1', 'v2.10.3', 'v2.12.0rc1']
for i,drpv in enumerate(drpvs):
color = ['r', 'g', 'b'][i]
labeled = False
for j,day in enumerate(set(mjd)):
wday = np.where((mjd == day) & (t['DRPTAGL2'] == drpv))
if len(wday[0]) > 0:
day_zp = np.median(t[f'ZP_{wav}'][wday])
if not labeled:
plt.plot(day, day_zp, f'{color}o', alpha=0.3, label=f'{drpvs[i]}')
labeled = True
else:
plt.plot(day, day_zp, f'{color}o', alpha=0.3)
plt.axvspan(SM1start.mjd, SM1end.mjd, color='k', alpha=0.3, label='Servicing Mission')
plt.axvspan(SM2start.mjd, SM2end.mjd, color='k', alpha=0.3)
plt.axvspan(SM3start.mjd, SM3end.mjd, color='k', alpha=0.3)
plt.axvspan(SM4start.mjd, SM4end.mjd, color='k', alpha=0.3)
if w in [3, 4]: plt.xlabel('MJD')
plt.ylabel('Zero Point')
plt.grid()
plt.legend(loc='best')
plt.show()
/Users/jwalawender/miniforge3/envs/py313/lib/python3.13/site-packages/numpy/_core/fromnumeric.py:840: UserWarning: Warning: 'partition' will ignore the 'mask' of the MaskedColumn.
a.partition(kth, axis=axis, kind=kind, order=order)
Discussion
Because the DRP version occurance roughly tracks the KPF Era, it is hard to be conclusive about time evolution, but there appears to be a general downward trend. When comparing KPF Era 2.0 and 4.0 which both dominantly use v2.12.0rc1, there does appears to be a downward step in zero points.
Save Results to Disk
t.write('data/Feb2026_withInstZPs.csv', overwrite=True)
ZPfile = Path('data/InstrumentZeroPoints.yaml')
if ZPfile.exists(): ZPfile.unlink()
with open(ZPfile, 'w') as f:
f.write(yaml.dump(ZeroPoint))
